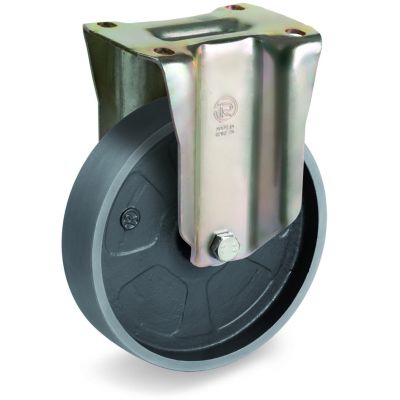

Cast Iron Wheel, Fixed Top Plate Castor, P Duty

Cast iron wheel with machined tread Standard to heavy duty loads Zinc plated pressed by steel castor housings

Download Series Data Sheet 3D CAD preview and model

Request a call back

Product Specification

Bore Type - Plain Bore

Part Number

Wheel Diameter

Tread Width

Overall Height

Pa Plate Dimension

Pa Hole Spacing

Hole Width

Carry Capacity Kg 4km/h

Unit Weight

Temperature

CAD Drawing

698602

100

148

100x85

80x60

350

1.26

-40 to 400

Request
Drawing

698603

125

161

100x85

80x60

350

1.46

-40 to 400

Request
Drawing

698504

150

200

140x110

105x80

750

2.73

-40 to 400

Request
Drawing

698506

200

250

140x110

105x80

750

4.35

-40 to 400

Request
Drawing

Bore Type - Ball Bearing

Part Number

Wheel Diameter

Tread Width

Overall Height

Pa Plate Dimension

Pa Hole Spacing

Hole Width

Carry Capacity Kg 4km/h

Unit Weight

Temperature

CAD Drawing

696302

100

148

100x85

80x60

350

1.85

-40 to 400

Request
Drawing

696303

125

160

100x85

80x60

350

2.05

-40 to 400

Request
Drawing

696304

150

200

140x110

105x80

750

3.38

-40 to 400

Request
Drawing

696306

200

250

140x110

105x80

750

4.65

-40 to 400

Request
Drawing
