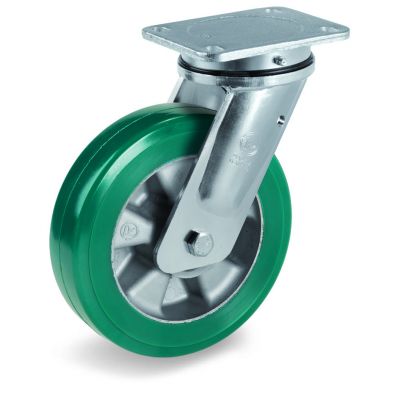

Green Elastic Polyurethane Tyre Bonded to Aluminium Centre, Electro Welded Swivel Top Plate Castor, EE MHD Duty

Twin ball bearing bore Medium-heavy duty loads Suitable for towing at 16km/h Zinc plated pressed steel castor housings Very quiet running and will overcome small floor debris

Download Series Data Sheet 3D CAD preview and model

Request a call back

Product Specification

Bore Type - Ball Bearing

Part Number

Wheel Diameter

Tread Width

Overall Height

Pa Plate Dimension

Pa Hole Spacing

Hole Width

Carry Capacity Kg 4km/h

Unit Weight

Pa Shore Hardness

Offset

Temperature

CAD Drawing

628302

100

170

135x110

105x80

300

3.38

75 Shore A

-20 to 70

Request
Drawing

628303

125

182

135x110

105x80

350

3.71

75 Shore A

-20 to 70

Request
Drawing

628314

160

215

135x110

105x80

550

4.25

75 Shore A

-20 to 70

Request
Drawing

628305

180

242

135x110

105x80

600

4.62

75 Shore A

-20 to 70

Request
Drawing

628306

200

252

135x110

105x80

700

4.97

75 Shore A

-20 to 70

Request
Drawing
